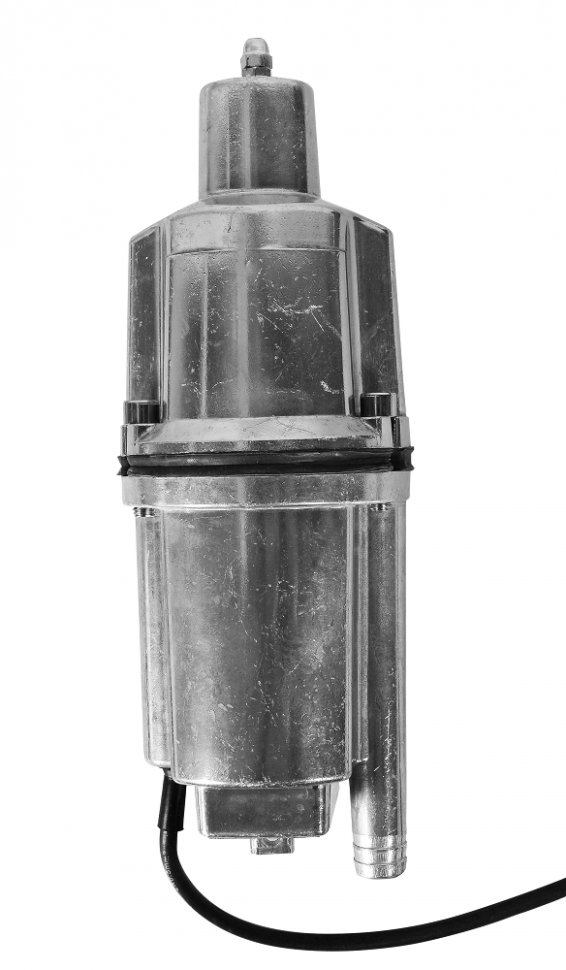

Vihr VN-1080N

Vihr VN-1080N

Submersible vibrating electric pump, designed for domestic water supply from wells, can also be used to supply water from mine wells, reservoirs and open reservoirs for watering gardens and orchards. The pumps are capable of pumping water over long distances horizontally, i.e. supply water from reservoirs located at a considerable distance from the places of water use.

Popis

Mains voltage, V 220-230
Mains frequency, Hz 50
Power, W 280
Type of water intake Lower
Maximum water lifting height, m 72
Maximum productivity, l/min eighteen
Maximum immersion depth of the pump, m 3
Outlet diameter, inch 3/4
Pump diameter, inch 4
Cable length, m 10
Packing dimensions 300×150×170mm
Weight, kg 3.24 kg
